BLACK ULTIMA STEEL PANEL

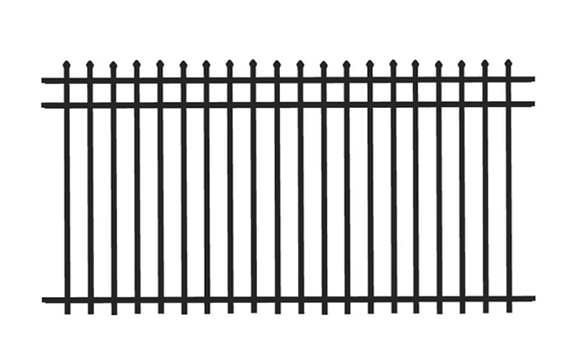

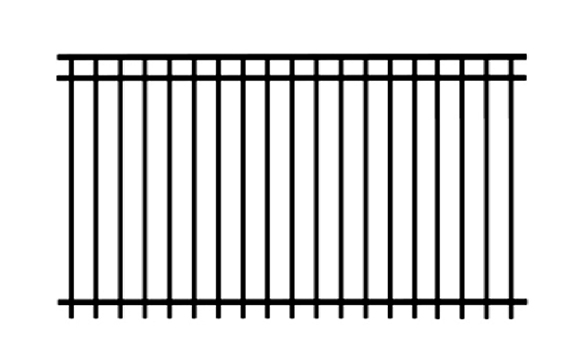

Black Ultima Steel Panel

  • COMPONENTS SPECIFICATIONS
  • 19 Nos - 0.75” Square x 18 Gauge wall thickness
  • 1.312” x 1.312”; Thickness: 16 Gauge
  • 3.937”
  • 8’ Standard Size Center to Center of Post
  • 48”, 72”
  • Black
  • 4’H x 8’W - 51lbs
  • 6’H x 8’W - 70lbs

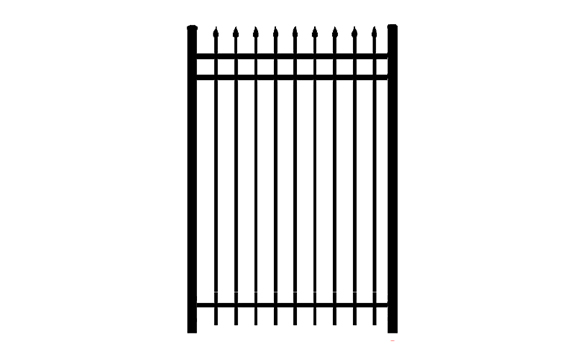

Black Ultima Steel Gate

  • COMPONENTS SPECIFICATIONS
  • 19 Nos - 0.75” Square x 18 Gauge wall thickness
  • 3 Nos - 1.312” x 1.312”; Thickness: 16 Gauge
  • 3.937”
  • 4’ Standard Size Center to Center of Post
  • 48”, 72”
  • Black
  • 4’H x 4’W - 10.4lbs
  • 6’H x 4’W - 18.5lbs

Black Advent Steel Panel

  • COMPONENTS SPECIFICATIONS
  • 19 Nos - ¾”Square x 18 Gauge wall thickness
  • 1.312” x 1.312”; Thickness: 16 Gauge
  • 3.937”
  • 8’ Standard Size Center to Center of Post
  • 48”, 72”
  • Black
  • 4’H x 8’W - 53lbs
  • 6’H x 8’W - 72lbs

Black Advent Steel Gate

  • COMPONENTS SPECIFICATIONS
  • 19 Nos - ¾”Square x 18 Gauge wall thickness
  • 3 Nos - 1.312” x 1.312”; Thickness: 16 Gauge
  • 3.937”
  • 4’ Standard Size Center to Center of Post
  • COMPONENTS SPECIFICATIONS
  • 48”, 72”
  • Black
  • 4’H x 4’W - 10.4lbs
  • 6’H x 4’W - 18.5lbs

STANDARD ACCESSORIES

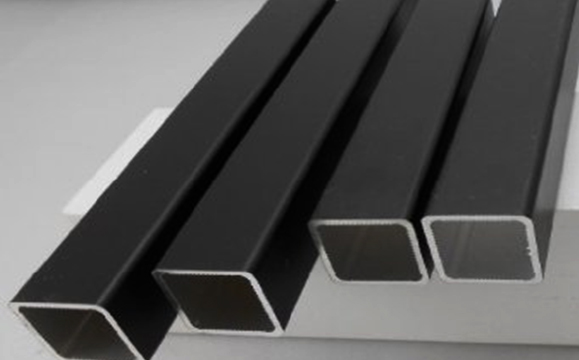

Post Pipes

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE 2.5” Square Pipes
  • FINISH 7 Tank Process of Pre Galvanizing, Then Powder Coating
  • BRACKET THICKNESS 16 Gauge
  • BRACKET THICKNESS 6’, 8’ and 9’

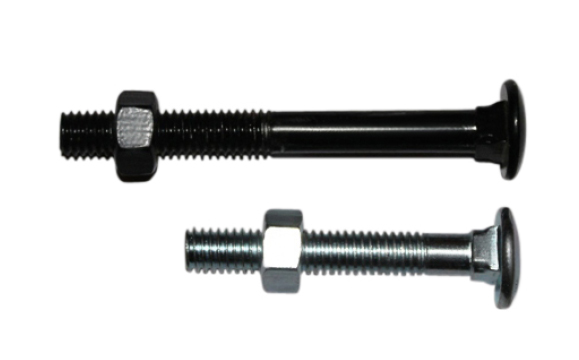

Cold Forged Carriage Bolts

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE Threading - 0.625”
  • FINISH Galvanized + Powder Coated Black
  • BRACKET THICKNESS .5” , 2” , 2.5” , 3”, 3.5”

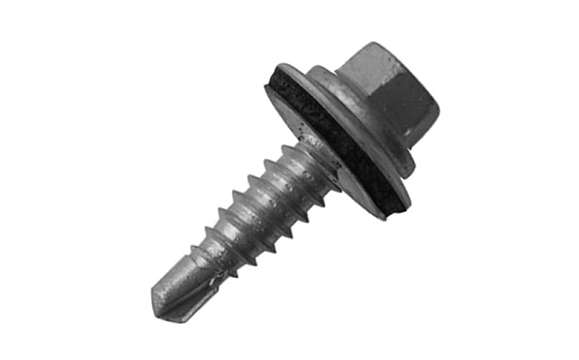

Self Drilling Screws

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE 0.3545” x 0.75”
  • FINISH Powder Coated Black

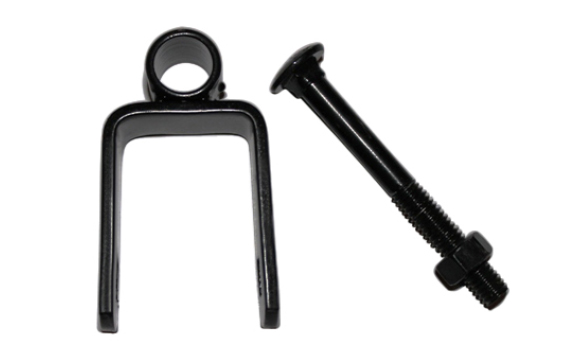

1 1/2” – Female (Gate) Hinges

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE For 2.5” Post/Pipe x 0.625” Hole(Id)
  • PACKING 50/Per Box
  • FINISH Galvanized + Powder Coated Black
  • BOLT SIZE Cold Forged Carriage Bolt 0.625”” x 2.5” Long
  • WEIGHT 0.38lb / per Pc Incl Bolt and Nut
  • BRACKET THICKNESS 0.048”

2 1/2” – Male (post) Hinges

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE For 2.5” Post/Pipe
  • PACKING 50/Per Box
  • FINISH Galvanized + Powder Coated Black
  • BOLT SIZE Cold Forged Carriage Bolt 0.625”” x 3.5” Long
  • WEIGHT 0.48lb / per Pc Incl Bolt and Nut
  • BRACKET THICKNESS 0.048”

2 1/2” – Recievers (LATCHES)

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE For 2.5” Post/Pipe
  • PACKING 50/Per Box
  • FINISH Galvanized + Powder Coated Black
  • BOLT SIZE Cold Forged Carriage Bolt 0.625” x 1.5” Long
  • WEIGHT 0.51lb / per Pc Incl Bolt and Nut
  • BRACKET THICKNESS 0.048”

Post Caps

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE 2.5” Ornamental Post Caps
  • FINISH Galvanized + Powder Coated Black
  • BRACKET THICKNESS 0.039”/ 20 Gauge

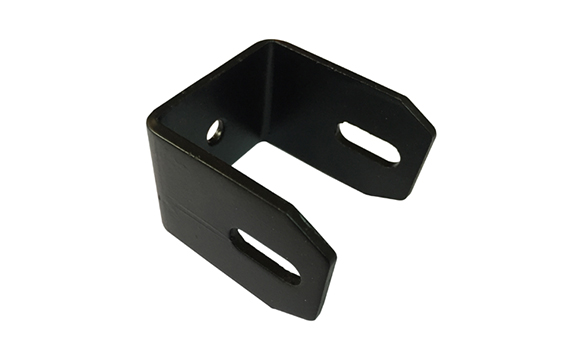

Corner Brackets

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE 1.375” ID
  • FINISH Galvanized + Powder Coated Black
  • BRACKET THICKNESS 0.125”

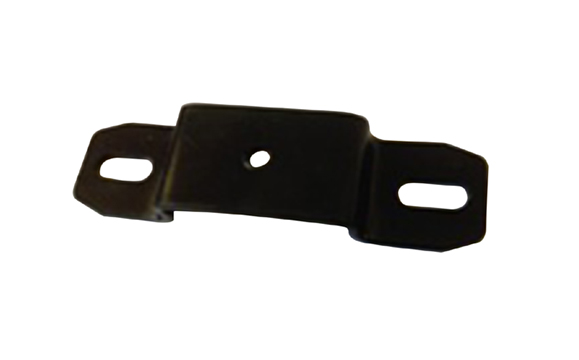

Boulevard Line Brackets

  • COMPONENTS SPECIFICATIONS
  • MATERIAL Mild Steel
  • SIZE 1.375” ID
  • FINISH Galvanized + Powder Coated Black
  • BRACKET THICKNESS 0.125”
